Part Number : STD30PF03LT4
Manufacturer : STMicroelectronics
Description : STD30PF03LT4 datasheet pdf and Transistors - FETs, MOSFETs - Single product details from STMicroelectronics stock available at Rozee
Lifecycle : New from this manufacturer
Delivery : DHL、UPS、FedEx、Registered Mail
Payment : T/T Paypal Visa MoneyGram Western Union
More Information : STD30PF03LT4 More Information
ECAD : Request Free CAD Models
Pricing(USD) : $0.00
Remark : Manufacturer: STMicroelectronics. Rozee is one of the Distributors. Wide range of applications.
Mount : Surface Mount
Height : 2.4 mm
Weight : 4.535924 g
Packaging : Digi-Reel®
Rds On Max : 28 mΩ
Nominal Vgs : 1 V
Current Rating : -24 A
Contact Plating : Tin
Power Dissipation : 70 W
Number of Elements : 1
Turn-Off Delay Time : 36 ns
Element Configuration : Single
Max Operating Temperature : 175 °C
Drain to Source Resistance : 32 mΩ
Continuous Drain Current (ID) : 24 A
Drain to Source Breakdown Voltage : -30 V
Products Category : Discrete Semiconductor - Transistors - FETs, MOSFETs - Single
Qty : 596 In Stock
Applications : Appliances Industrial transport (non-car & non-light truck) Data storage
Width : 6.2 mm
Length : 6.6 mm
Fall Time : 26 ns
Rise Time : 122 ns
Resistance : 28 mΩ
Case/Package : TO-252
Number of Pins : 3
Input Capacitance : 1.67 nF
Threshold Voltage : -1 V
Turn-On Delay Time : 64 ns
Voltage Rating (DC) : -30 V
Max Power Dissipation : 70 W
Min Operating Temperature : -55 °C
Gate to Source Voltage (Vgs) : 16 V
Drain to Source Voltage (Vdss) : 30 V
![]() |

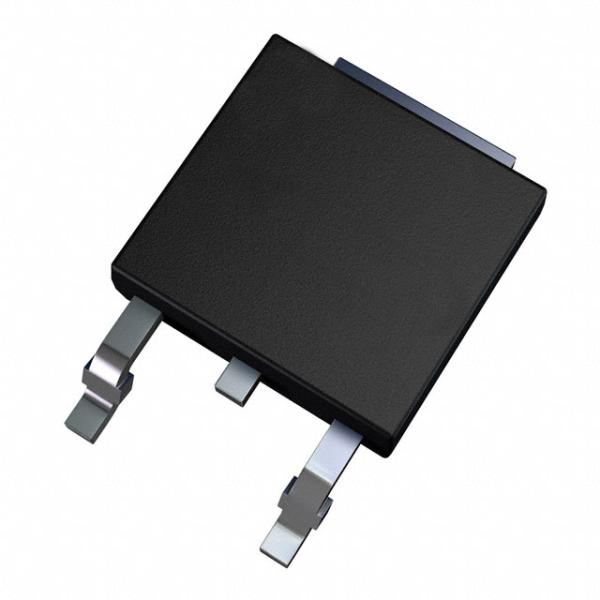

STD30PF03LT4 Images |
